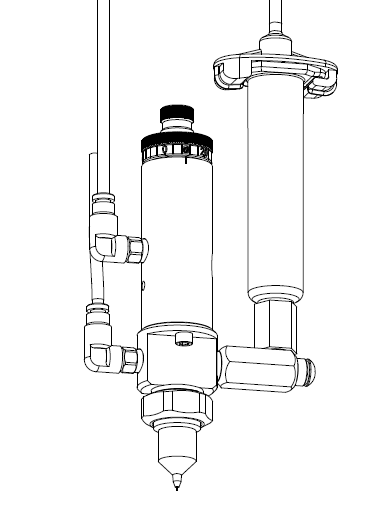

日本精密喷涂喷枪|1-2mm宽微量喷雾阀

  • LUMINA露明纳UA-6R-0.5X
  • 扶桑露米娜根UA-6N-1.0X型φ1.0(空气盖SUS)
  • 日本精密喷涂喷枪|油墨精密喷雾阀
  • 日本精密喷涂喷枪|1-2mm宽微量喷雾阀

产品摘要:

微量喷雾阀:精密喷涂喷枪针式雾化超窄喷涂,雾化颗粒1μ,能很好控制飞溅解决精密喷雾问题。


产品描述

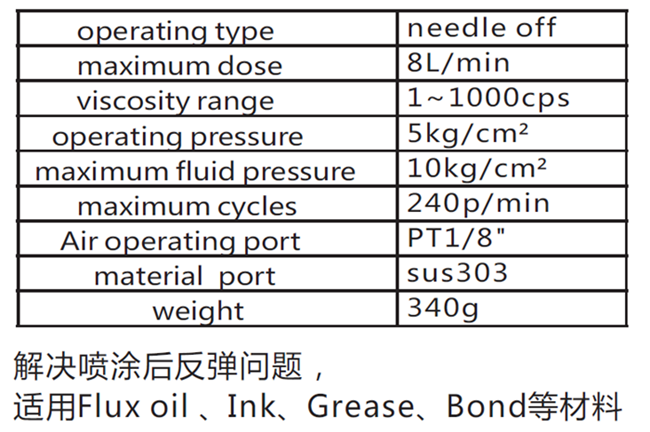

Specifications:
Size: 131.6 mm length x 26.9 mm
diameter (5.18" x 1.06")
Weight: 336 grams (11.8 oz)
Fluid body: Type 303 stainless steel
Air cylinder body: Type 303 stainless steel
Piston: Type 303 stainless steel
Needle: Type 303 stainless steel
Fluid inlet thread: 1/8 NPT female
Air cap: Type 303 stainless steel
Free flow orifice: 33 ga (.004, 0.10mm) to
23 ga (.013, 0.33 mm)
Needle packagings: PTFE
Mounting: ¼-28 UNF tapped hole
Maximum fluid pressure: 100 psi
Maximum operating temperature: 102°C (215°F)
Specifications:
Size: 131.6 mm length x 26.9 mm
diameter (5.18" x 1.06")
Weight: 336 grams (11.8 oz)
Fluid body: Type 303 stainless steel
Air cylinder body: Type 303 stainless steel
Piston: Type 303 stainless steel
Needle: Type 303 stainless steel
Fluid inlet thread: 1/8 NPT female
Air cap: Type 303 stainless steel
Free flow orifice: 33 ga (.004, 0.10mm) to
23 ga (.013, 0.33 mm)
Needle packagings: PTFE
Mounting: ¼-28 UNF tapped hole
Maximum fluid pressure: 100 psi
Maximum operating temperature: 102°C (215°F)
