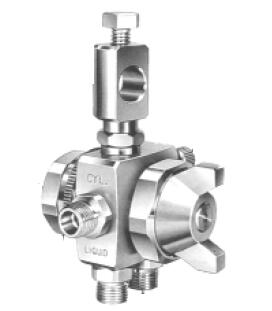

露明纳不锈钢喷枪|喷雾阀
产品名称:
露明纳不锈钢喷枪|喷雾阀型号:
STS-6W-0.5X价格:
1最小起订量:
1
产品摘要:
型录：STS-6W-0.5X、STS-6W-1.0X、STS-6W-1.3X、STS-6W-2.0X
- 产品描述
■As shown in the drawing below, fit a Regulator and an Air Filter.For the best efficiency, attach them near to the spray gun.■Atomization air can be used with low, middle and high pressure, such as 0.01-0.1-0.4 MPa.When spraying a fine mist, set air pressure higher, and when spraying a coarse mist, set the levellower. When spraying an oil, low pressure air spraying at 0.01-0.1 MPa can inhibit oil scattering.With Atomization air use a Direct Acting Solenoid Valve (2-port).■Piston drive air pressure should be the level between 0.2 MPa (30psi) and 0.5MPa (70psi). The air issupply for the Piston drive air and Atomization air, in ST-6 model, are separate. The Piston air isused for driving #8 Piston to open/close #2 Liquid Nozzle to start/stop liquid spraying. If thepressure of piston drive air is set too low below 0.2 MPa, #8 Piston will not move, and liquid willnot come out of the nozzle.■As shown in the drawing below, fit a Regulator and an Air Filter.For the best efficiency, attach them near to the spray gun.■Atomization air can be used with low, middle and high pressure, such as 0.01-0.1-0.4 MPa.When spraying a fine mist, set air pressure higher, and when spraying a coarse mist, set the levellower. When spraying an oil, low pressure air spraying at 0.01-0.1 MPa can inhibit oil scattering.With Atomization air use a Direct Acting Solenoid Valve (2-port).■Piston drive air pressure should be the level between 0.2 MPa (30psi) and 0.5MPa (70psi). The air issupply for the Piston drive air and Atomization air, in ST-6 model, are separate. The Piston air isused for driving #8 Piston to open/close #2 Liquid Nozzle to start/stop liquid spraying. If thepressure of piston drive air is set too low below 0.2 MPa, #8 Piston will not move, and liquid willnot come out of the nozzle.7~10 3/8~1/2 322~760 3/8~1/2 15~40No. of spray Piping Caliber Air Consumption 3-3-port Solenoid Valveguns used (0.1MPa ), L/min Piping ConnectionCaliberEffective SectionalArea , mm21 1/4 46~76 1/4 3~52~3 3/8 92~228 3/8 4~154~6 3/8 184~456 3/8 10~257~10 3/8~1/2 322~760 3/8~1/2 15~40
